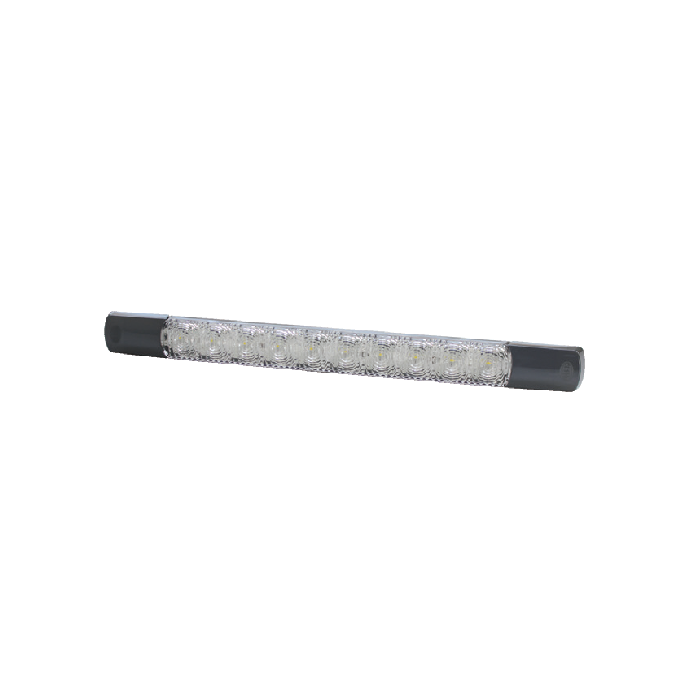

Hella 5619-24V LED Daytime Running Lamp 24V 3 Watt Safety Daylights

Hella 5619-24V LED Daytime Running Lamp 24V 3 Watt Safety Daylights

Hella 5619-24V LED Daytime Running Lamp 24V 3 Watt Safety Daylights

Power Consumption

3W

Protection

Reverse polarity protection.

IP 6K7 (Protection against dust and temporary water immersion)

IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Spare Parts

• 1009 Single lamp 12V (Horizontal mount)
• 1009-24V Single lamp 24V (Horizontal mount)
• 1009V Single lamp 12V (Vertical mount)
• 1009V-24V Single lamp 24V (Vertical mount)
• 9.2652.09 White screw caps (Pack of 4)
• 9.1009.09 Charcoal screw caps (Pack of 4)
• 9.1009.10 Chrome plated screw caps (Pack of 4)

Lens Material

Grilamid®

Compliance

ADR 76/00

E24

5875

ECE R87/00

Kit Contents

2 x LED Safety DayLights™

4 x Mounting screws

4 x Screw caps

1 x Changeover relay

1 x Instruction sheet

LED-Daytime Running Light Set - Strip Lamp - 12V - ADR/GGVS - Cable: 2500mm - Vehicle Front - Set

Features

• Height: 25mm - Lamp Type: LED
• Light functions: 1 - with daytime running light (LED)
• Registration Type: ADR/GGVS - Fulfils ECE norm.: R87/R7 - fulfils ADR/GGVS norm: 76/00 - Prot.type (IP Code): IP6K7/IP6K9K
• Diffusing Lens Material: Polyamid 12
• Mounting Type: Bolted - Fastening Type: Horizontal fastening

Specifications

• Part number: 5619-24V
• Hella number: 2PT 980 880-851
• Barcode (EAN): 9416325217329
• Brand: Hella
• Mounting Type: Bolted
• Fastening Type: Horizontal fastening
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 V
• Fitting Position: Vehicle Front
• Height: 25 mm
• Light Function: with daytime running light (LED)
• Protection Type per ISO 20653: IP6K7
• Number of light functions: 1
• fulfils ECE standard: R7
• fulfils ADR/GGVS standard: 76/00
• Registration Type: ADR/GGVS approved
• Cable Length: 2500 mm
• Power Consumption: 3 W
• Reverse polarity protection: Yes
• Lens Material: Polyamid 12
• Quantity Unit: Set
• Product line: Strip Lamp

Assy./disassy. by qualified personnel required!
