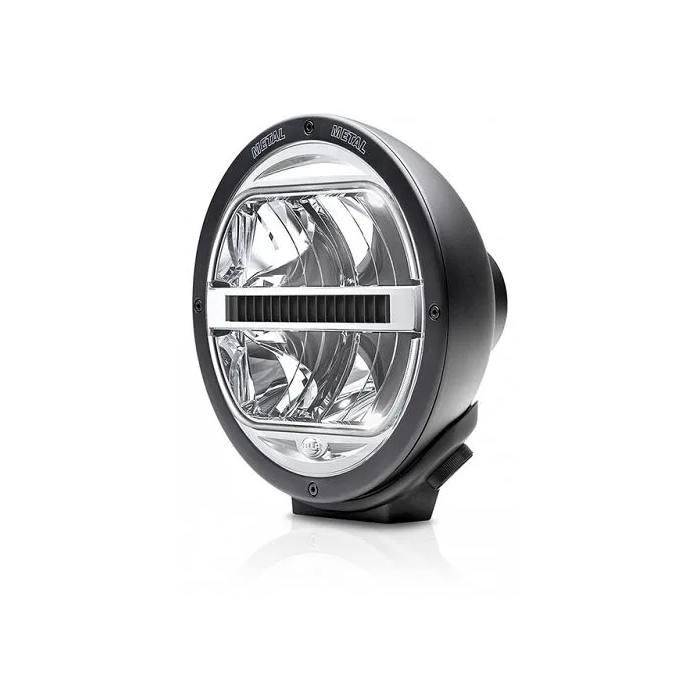

Hella 1F8016560011 Luminator 3.0 LED Satin Black Pencil Beam ECE Ref.50

Hella 1F8016560011 Luminator 3.0 LED Satin Black Pencil Beam ECE Ref.50

Hella 1F8016560011 Luminator 3.0 LED Satin Black Pencil Beam ECE Ref.50

The latest revolutionary Luminator LED driving lamp now features a distinctive position lamp function made possible by HELLA’s innovative Edge Light technology. Utilising the Rallye 4000 metal body, which has proven itself on rally cars and heavy machinery, these lamps are sturdy and reliable. With efficient low power consumption as well as high efficacy from the latest technology allowing up to nearly 600m of light for only 2x15W of power. The LED robustness and durable design allows for a long life and is supported by a HELLA 5 year warranty.

­• Bright white LED light (5900K)
• Two beam patterns, up to 595m
• Integrated LED Front Position Lamp
• Low power consumption (15W)
• Replaceable LED headlamp insert
• Shock resistant PC cover lens
• 5 year warranty

LED-Spotlight - Luminator LED - 24/12V - round - Reference number: 50 - Clear diffusing lens - Crystal clear - Cable: 800mm - left/right

Width: 222mm - Height: 222mm - Depth: 131mm - Fitting Depth: 90mm - Overall Height: 232mm - Lamp Type: LED - with LED - Electromagnetic Compatibility (EMC)/without cap

HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.

Features

• Light functions: 2 - with high beam (LED)/with position light (LED)
• Fulfils ECE norm.: R10/R112/R7
• Metal Housing - Housing Colour: Black - Frame Colour: Black - Lens Colour: Crystal clear
• Mounting Type: Bolted - Fastening Type: Swivelling Mounting Bracket
• Auxiliary driving lamps with future-oriented look using the latest LED technology
• The striking night design is realised by the LED position light with characteristic hexagonal contour design
• Delay-free light signal thanks to attention-grabbing flasher function
• The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² enables efficient thermal management
• High-quality, robust, full-metal headlamp with die-cast zinc housing and mounting bracket

Specifications

• Part number: 1F8016560011
• Hella number: 1F8 016 560-011
• Barcode (EAN): 4082300768916
• Brand: Hella
• Mounting Type: Bolted
• Fastening Type: Swivelling Mounting Bracket
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Fitting Position: Left / Right
• Height: 222 mm
• Overall Height: 232 mm
• Width: 222 mm
• Depth: 131 mm
• Fitting Depth: 90 mm
• Light Function: with high beam (LED) / with position light (LED)
• Number of light functions: 2
• fulfils ECE standard: R10 / R112 / R7
• Reference number: 50
• Cable Length: 800 mm
• Housing Colour: black
• Lens Colour: Crystal clear
• Frame Colour: black
• Shape: round
• Housing Type: Metal Housing
• Lens Type: clear lens
• Product line: Luminator LED

Electromagnetic Compatibility (EMC) Electromagnetic Compatibility (EMC) with LED 7439-92-1; Lead Assy./disassy. by qualified personnel required!
