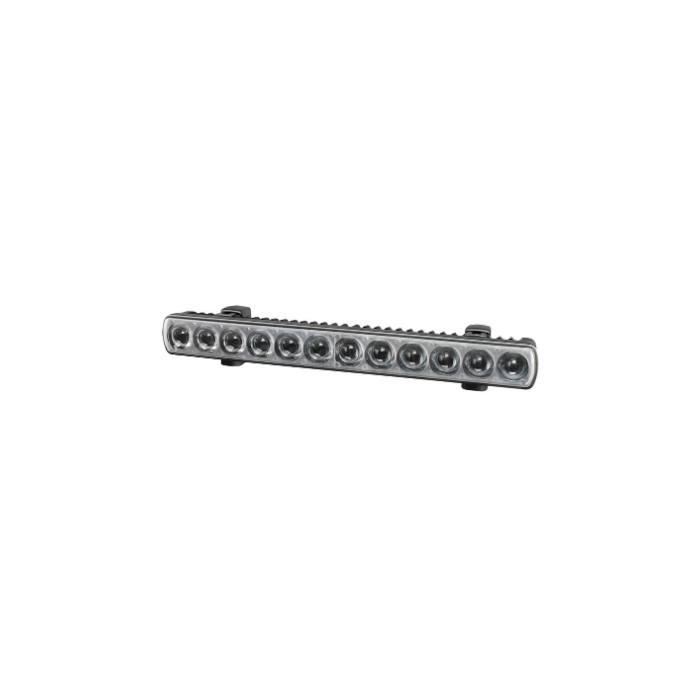

Hella 1395 12 LED Light Bar 350 with Plastic Bracket - Pencil Beam

Hella 1395 12 LED Light Bar 350 with Plastic Bracket - Pencil Beam

Hella 1395 12 LED Light Bar 350 with Plastic Bracket - Pencil Beam

Mounting

Upright or Pendant

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts DC.

Power Consumption

25W

Maximum Luminous

Intensity

1395: 96,000 candela

1396: 145,000 candela

Protection

Reverse polarity and transient spike protection.

IP 6K7 (Protection against dust and temporary water immersion)

IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of tinned multi-core cable.

Compliance

2909 R10/04

1395:

0008 R112/01 Ref. 20

1396:

0009 R112/01 Ref. 30

Warranty

5 years

LED-Spotlight - Light Bar LB350 - 12/24V - rectangular - Reference number: 20 - Clear diffusing lens - Crystal clear

The HELLA auxiliary headlights LED Light Bar 350 and 470 were developed for the special requirements of off-road vehicles as well as for aerodynamic roof mounting on truck cabs. The LED spotlights in the form of a compact light strip have a low overall height and low weight. The bright high-performance LEDs provide wide illumination. In addition, the LED Light Bar 470 is submersible and thanks to the housing made of heat-conducting plastic, heat is effectively dissipated from the LED electronics. There are different versions of the LED Light Bar 350 and 470. The LED Light Bar 470 Single Twin, for example, is particularly suitable as a double auxiliary headlamp for central mounting on the vehicle. And the LED Light Bar 470 Combi, as a pure off-road headlamp without approval for road traffic, has a wide-ranging and extremely broad illumination.

Features

• Width: 350mm - Height: 40mm - Depth: 81mm - Fitting Depth: 13mm - Overall Height: 57mm - Lamp Type: LED - with LED - without cap
• Light functions: 1 - with high beam (LED)
• Synthetic Material Housing - Housing Colour: Black - Lens Colour: Crystal clear
• Mounting Type: mounting/Bolted - Fastening Type: Swivelling Mounting Bracket/Suspended/Vertical
• Developed for the special requirements of off-road vehicles and for aerodynamic roof mounting on truck cabs
• Submersible for off-road use (fording capacity up to 10 m water depth up to 2 hours), IP 6K
• LED spotlight in the form of a compact batten luminaire with high-intensity, high-performance LED
• Effective heat dissipation of the LED electronics via the housing made of thermally conductive plastic
• Compact size and a variety of mounting options

Specifications

• Part number: 1395
• Hella number: 1FJ 958 040-021
• Barcode (EAN): 9416325235941
• Brand: Hella
• Mounting Type: Bolted / mounting
• Fastening Type: Suspended / Swivelling Mounting Bracket / Vertical
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Height: 40 mm
• Overall Height: 57 mm
• Width: 350 mm
• Depth: 81 mm
• Fitting Depth: 13 mm
• Light Function: with high beam (LED)
• Number of light functions: 1
• Reference number: 20
• Housing Colour: black
• Lens Colour: Crystal clear
• Shape: rectangular
• Housing Type: Synthetic Material Housing
• Lens Type: clear lens
• Product line: Light Bar LB350

without cap with LED Assy./disassy. by qualified personnel required!
