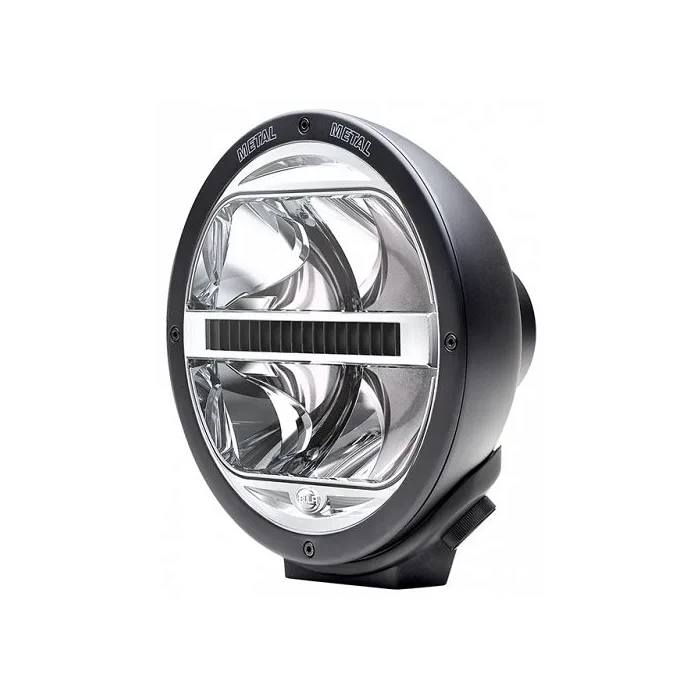

Hella 1366LED Rallye 4000 LED Satin Black Wide Beam Driving Lamp

Hella 1366LED Rallye 4000 LED Satin Black Wide Beam Driving Lamp

Hella 1366LED Rallye 4000 LED Satin Black Wide Beam Driving Lamp

The Rallye 4000 LED driving lamp combines performance and durability like never before. These lamps are sturdy and reliable with an efficient low power consumption of 33W. The high efficacy from the latest technology allows up to nearly 1.3km of light. The LED robustness and durable design allows for a long life and is supported by a HELLA 5 year warranty.

Note: Due to the high performance of these LED driving lamps, they exceed the allowed maximum light intensity to be ECE compliant, and therefore are recommended for Motorsport or off-road use only.

­• Bright white LED light (5900K)
• Two beam patterns, up to 1.3km visibility
• Longer reaching beam than HID Predators
• Lamp inserts can be retrofitted into Rallye 4000 housings
• Shock resistant PC cover lens
• 5 Year Warranty

LED-Spotlight - Rallye 4000 LED - 24/12V - 1800lm - round - Floodlight Diffusing Lens/Clear diffusing lens - Crystal clear - Cable: 400mm - left/right

Width: 222mm - Height: 222mm - Depth: 131mm - Fitting Depth: 90mm - Overall Height: 232mm - Lamp Type: LED - with LED - Electromagnetic Compatibility (EMC)/without cap

Features

• Light functions: 1 - with high beam (LED)
• Fulfils ECE norm.: R10
• Metal Housing - Housing Colour: Black - Frame Colour: Black - Lens Colour: Crystal clear
• Mounting Type: Bolted - Fastening Type: Swivelling Mounting Bracket
• LED auxiliary driving lamp Rallye 4000 LED with distinctive LED position light in hexagonal contour design
• Robust all-metal spotlight with black housing, with mounting bracket for precision adjustment
• Vibration resistant under extreme conditions
• Replaceable headlamp insert with impact-resistant PC lens
• The horizontal cooling fin is optimally integrated into the auxiliary headlamp design and enables efficient thermal management

Specifications

• Part number: 1366LED
• Hella number: 1F8 016 560-101
• Barcode (EAN): 4082300773774
• Brand: Hella
• Mounting Type: mounting
• Fastening Type: Swivelling Mounting Bracket
• Fitting Position: Left / Right
• Lamp Type: LED
• Light Function: with high beam (LED) / with position light (LED)
• Light Design: LED
• Luminous Flux: 1800 lm
• Voltage: 12 / 24 V
• Width: 222 mm
• Height: 222 mm
• Overall Height: 232 mm
• Depth: 131 mm
• Fitting Depth: 90 mm
• Cable Length: 400 mm
• Housing Type: Metal Housing
• Housing Colour: black
• Frame Colour: black
• Lens Type: Floodlight Lens / clear lens
• Lens Colour: Crystal clear
• fulfils ECE standard: R10
• Number of light functions: 2
• Shape: round
• Product line: Rallye 4000

7439-92-1; Lead with LED Electromagnetic Compatibility (EMC); without cap Assy./disassy. by qualified personnel required!
